Homogenous null model
Wiegand, Getzin, Hesselbarth
First, we load all packages, just as before.
library(spatstat)
library(tidyverse)Exercise 5
Task: Calculate the bivariate g12 function using the null model random labeling. Was the process that labeled trees as dead or alive a random process.
In case it is not in our workspace anymore, we import the data and
convert it to a ppp object again.
douglas_fir <- read_delim(file = "Data/DouglasFir_LiveDead_OGN.txt",
delim = ";")
douglas_fir <- mutate(douglas_fir,
mark = case_when(mark == 1 ~ "alive",
mark == 2 ~ "dead"),
mark = as.factor(mark))
plot_area <- ripras(x = douglas_fir$x, y = douglas_fir$y,
shape = "rectangle")
douglas_fir_ppp <- as.ppp(X = douglas_fir, W = plot_area)The function envelope() can also be used to simulate
more complex null models than ‘CSR’ and basically all functions
(fun) that return a fv object. This time, we
use the bivariate pair-correlation function as fun called
pcfcross in spatstat. We need to specify the
arguments of pcfcross i and j
indicating the two types of marks. simulate allows us to
specify any possible null model as an expression. Random labeling can be
simulated with the help of rlabel. Lastly, we specify the
number of simulation (nsim) and the highest/lowest values
to use for the envelopes (nrank) and the distances at which
the function should be evaluated (r) just as before.
random_labeling <- envelope(douglas_fir_ppp,
fun = pcfcross,
i = "alive", j = "dead",
r = seq(from = 0, to = 45, by = 0.5),
divisor = "d", nsim = 199, nrank = 5,
simulate = expression(rlabel(douglas_fir_ppp)))If we visualise the null model data, we see that during the randomisation the location of all events stay unchanged and only the marks are randomly shuffled acroos the events.

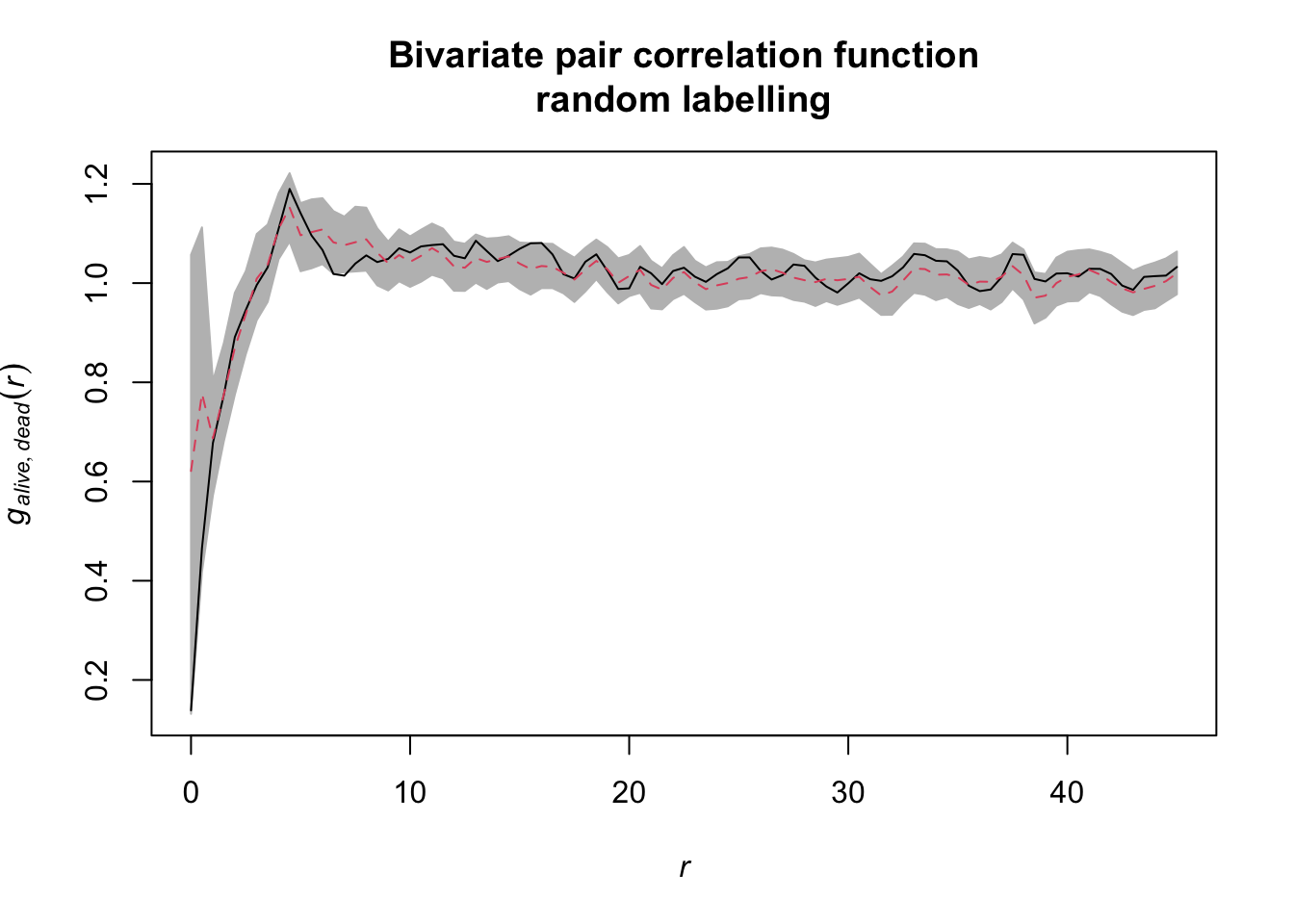

The results can be visualised using the plot()
function.
Exercise 6
Task: Redo the analysis from 5) and try out different settings for the number of simulations and the used lowest/highest values (e.g. n = 39, 199, 499 and lowest/highest = 1, 5, 10). Do the results change?
All we need to do is change the nsim and the
nrank argument of the envelope() function and
save the results in order to compare them later. In order to avoid
typing the same code all the time, we are going to create a
tibble with all possible parameter combinations first and
then loop through this tibble. We are going to use the
map() function from the purrr-package. The
function is an easy way to create a loop and the result is type stable
(i.e. a list). We can then convert this list
to a tibble again and use e.g. ggplot2 to
create a nice overview plot.
nsim <- c(39, 199, 499)
nrank <- c(1, 5, 10)
param_envelopes <- expand.grid(nsim = nsim, nrank = nrank)
param_envelopes <- arrange(param_envelopes, nsim, nrank)
random_labeling_multiple <- purrr::map(1:nrow(param_envelopes), function(i) {
as_tibble(envelope(douglas_fir_ppp,
fun = pcfcross,
i = "alive", j = "dead",
r = seq(from = 0, to = 45, by = 0.5),
divisor = "d", nsim = param_envelopes[i, 1], nrank = param_envelopes[i, 2],
simulate = expression(rlabel(douglas_fir_ppp))))
})
names(random_labeling_multiple) <- paste0("nsim_", param_envelopes$nsim, "_nrank_", param_envelopes$nrank)
random_labeling_multiple <- bind_rows(random_labeling_multiple, .id = "id") ggplot(data = random_labeling_multiple) +
geom_ribbon(aes(x = r, ymin = lo, ymax = hi, fill = "Simulation envelope"), alpha = 0.75) +
geom_line(aes(x = r, y = obs, col = "Observed value")) +
scale_fill_manual(name = "", values = c("Simulation envelope" = "grey")) +
scale_colour_manual(name = "", values = c("Observed value" = "black")) +
facet_wrap(~id) +

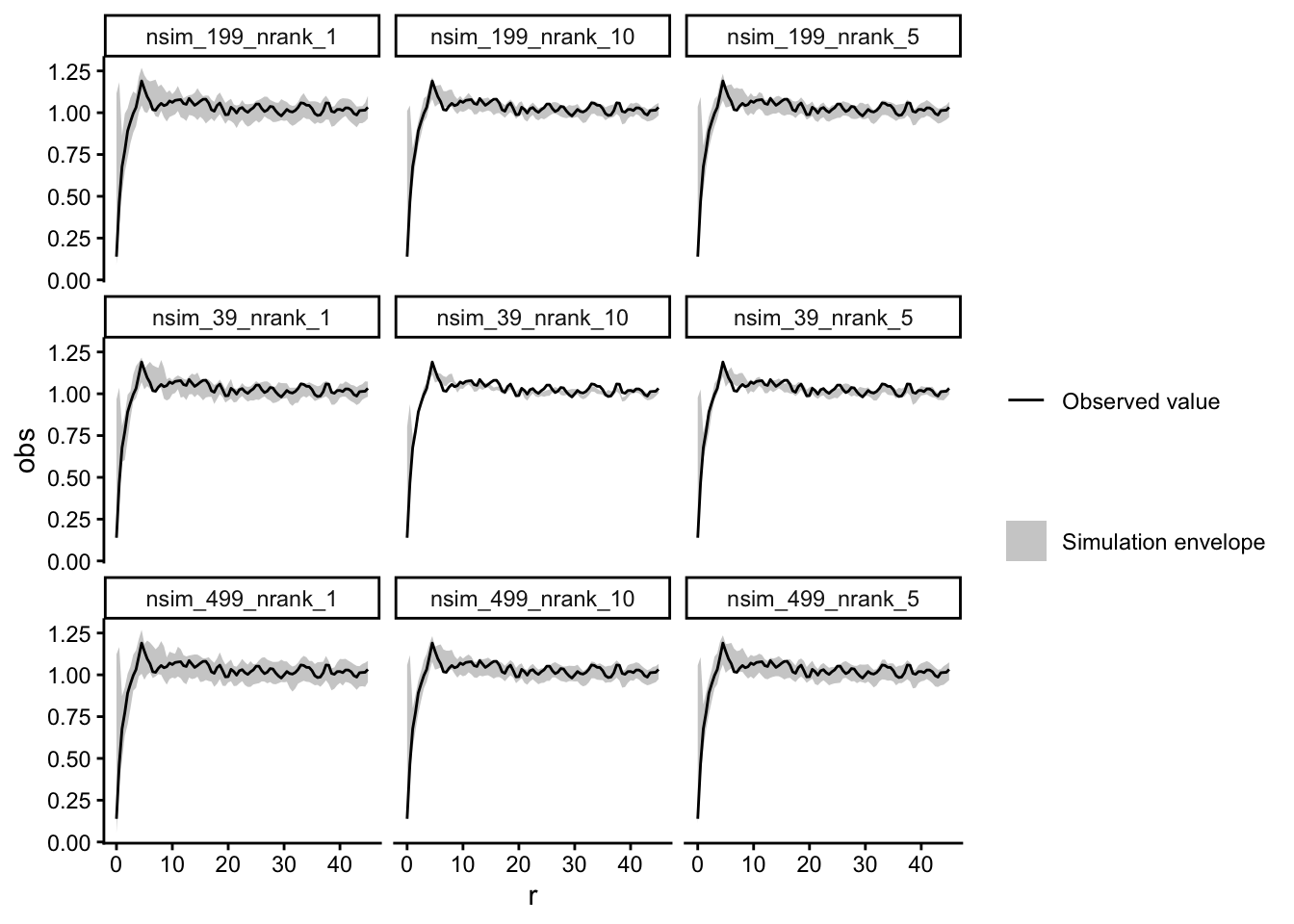

theme_classic()
Exercise 7
Task: Now use the data set DouglasFir_Adult_vs_Seedling_OGN. Here, pattern 1 gives the locations of adult trees and pattern 2 gives the locations of seedlings. Calculate \(O_{12}(r)\) and generate 95% confidence envelopes for the null model antecedent conditions (Pattern 1: fixed, pattern 2: random). What would be a meaningful interpretation of the results?
Firstly, we import the data and convert it to a ppp
object. Also, we reclassify the mark column to 1 == ‘adults’ and 2 ==
‘seedlings’ and convert it as a factor.
douglas_fir <- read_delim(file = "Data/DouglasFir_Adult_vs_Seedling_OGN.txt",
delim = ";")
douglas_fir <- mutate(douglas_fir,
mark = case_when(mark == 1 ~ "adults",
mark == 2 ~ "seedlings"),
mark = as.factor(mark))
plot_area <- ripras(x = douglas_fir$x, y = douglas_fir$y,
shape = "rectangle")
douglas_fir_ppp <- as.ppp(X = douglas_fir, W = plot_area)
Now, we need to implement the bivariate O-ring statistic O12(r). We want to multiply the bivariate pair-correlation function g12(r) with the intensity of lambda2.
Oest_cross <- function(input, i, j, r = NULL,
correction = "Ripley", divisor = "d", ...){
gij <- pcfcross(input,
i = i, j = j, r = r,
correction = correction, divisor = divisor, ...)
lambda <- intensity(input)[j]
eval.fv(gij * lambda)
}spatstat has no build-in function to simulate a null
model of ‘antecedent conditions’. But remember, we can give the
simulate argument of the envelope() function a
list of patterns. Therefore, we just need to simulate the null model and
save the results in a list.
After splitting the point pattern into seedlings and adults, we
create a new, random pattern with the same number of points
(n) and the same observation window (win) as
the seedlings. Then, we superimpose the random seedlings with the
unchanged adults. Lastly, we save the result in a list.
null_model_pattern <- list()
seedlings <- subset.ppp(douglas_fir_ppp,
marks == "seedlings", drop = TRUE)
adults <- subset.ppp(douglas_fir_ppp, marks == "adults", drop = TRUE)
for (i in 1:199) {
random_seedlings <- rpoint(n = seedlings$n,
win = seedlings$window)
overall_pattern <- superimpose(adults = unmark(adults),
seedlings = random_seedlings)
null_model_pattern[i] <- list(overall_pattern)

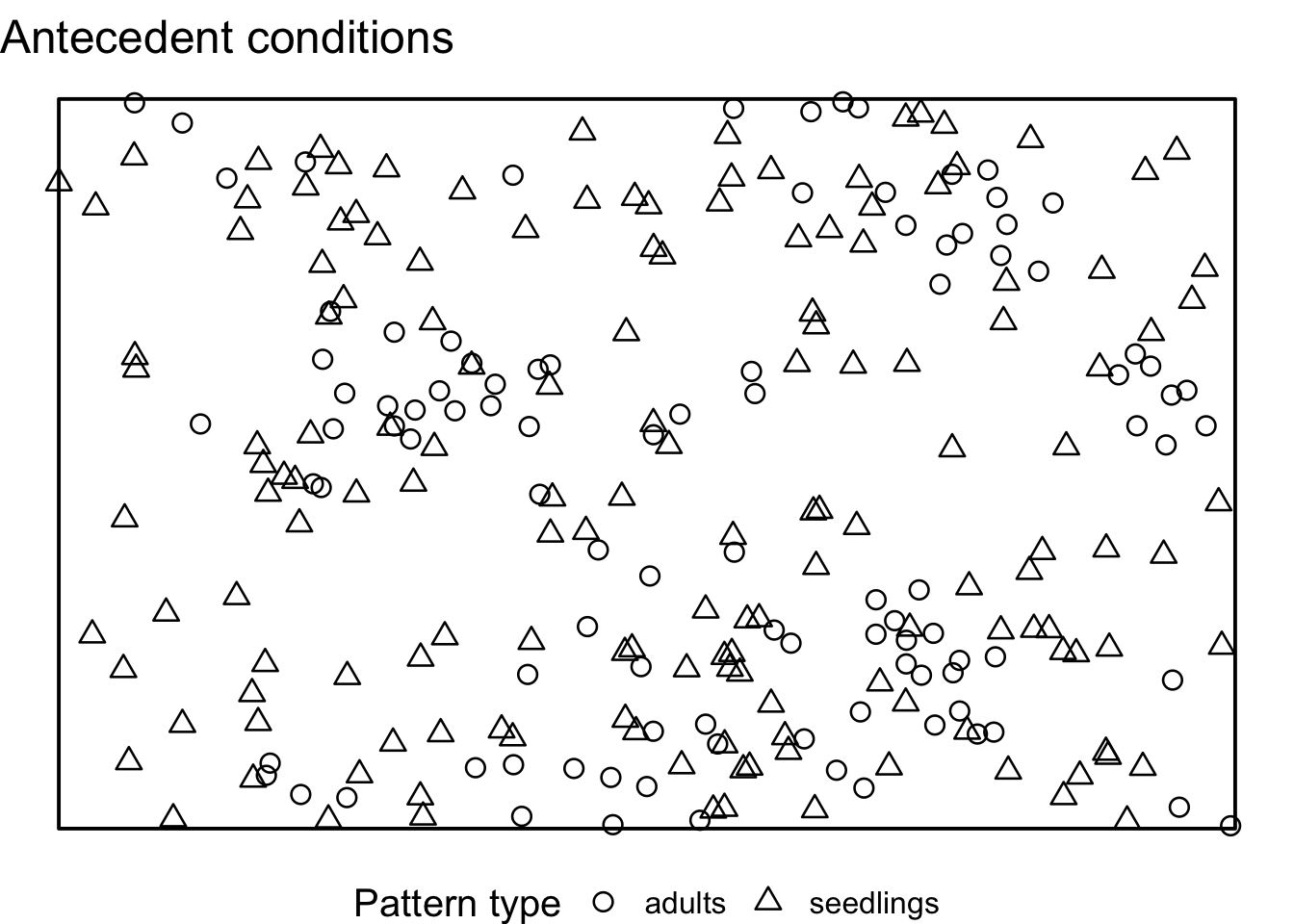

}If we visualise the null model patterns, we can see that the location of all adult trees does not change, but the the location of all seedlings is randomised using CSR.
Now, we can compute the simulation envelopes as usually.
antecedent_conditions <- envelope(douglas_fir_ppp,
fun = Oest_cross,
i = "adults", j = "seedlings",
r = seq(from = 0, to = 45,
by = 0.5),
nsim = 199, nrank = 5,
simulate = null_model_pattern)
The onpoint
(Hesselbarth 2025) package also includes an function to simulate
antecedent conditions as null model (see
?simulate_antecedent_conditions for help).
Exercise 8
Task: How does the interpretation of the ‘Toroidal shift’ null model differ from the null models in 7)? What is the advantage? Is it always an advantage?
There is a possibility to simulate the ‘toroidal shift’ null model
with functions provided by spatstat. We just use the
function rshift() and specify the behavior at the edge of
the observation area (edge) and which points should be
shifted (which).

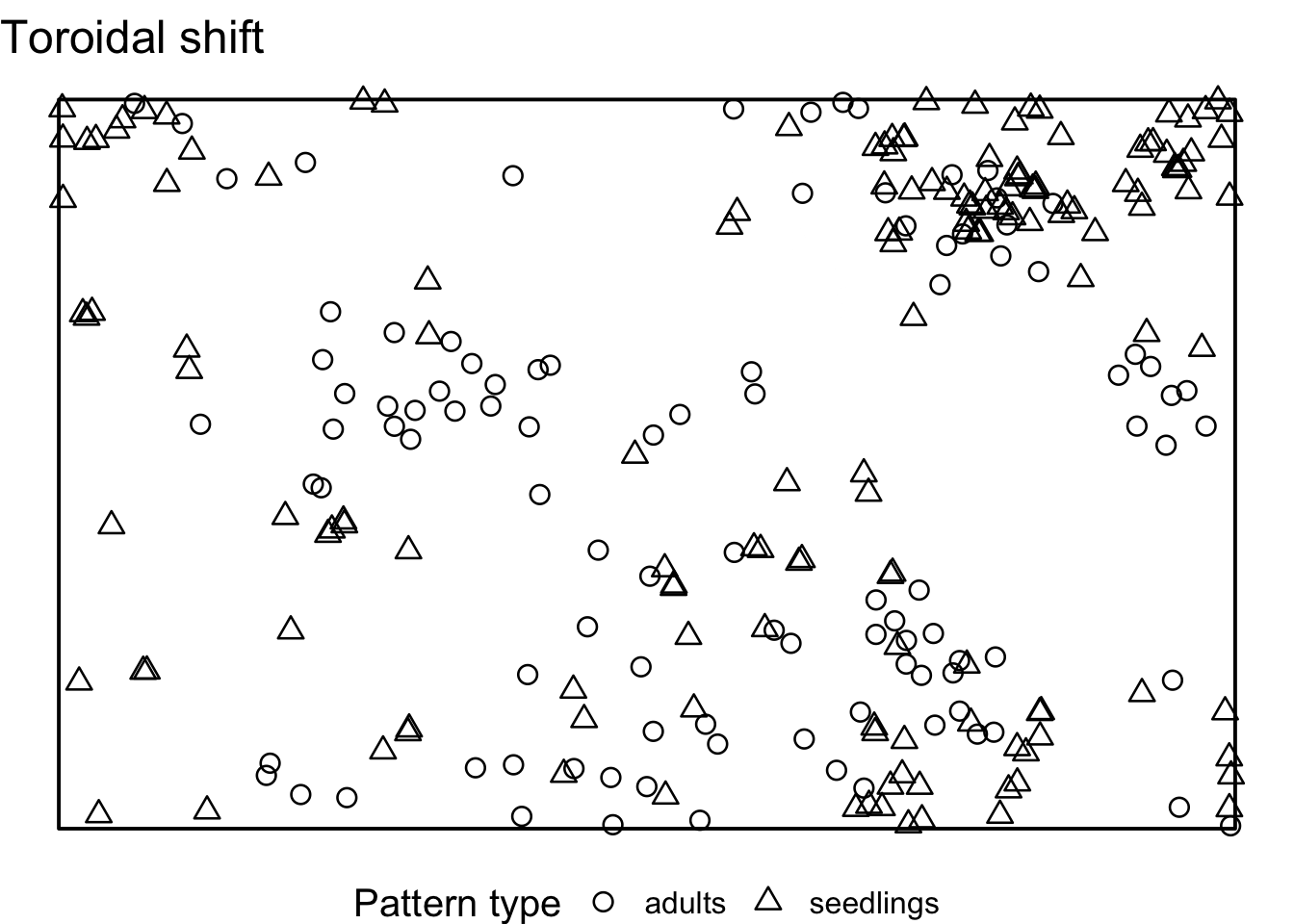

If we visualise the null model data, we see that the location of all adult trees is identical between the simulations. However, the location of the seedlings are randomised. Using the toroidal shift, you can see that the overall spatial structure of the seedlings is preserved

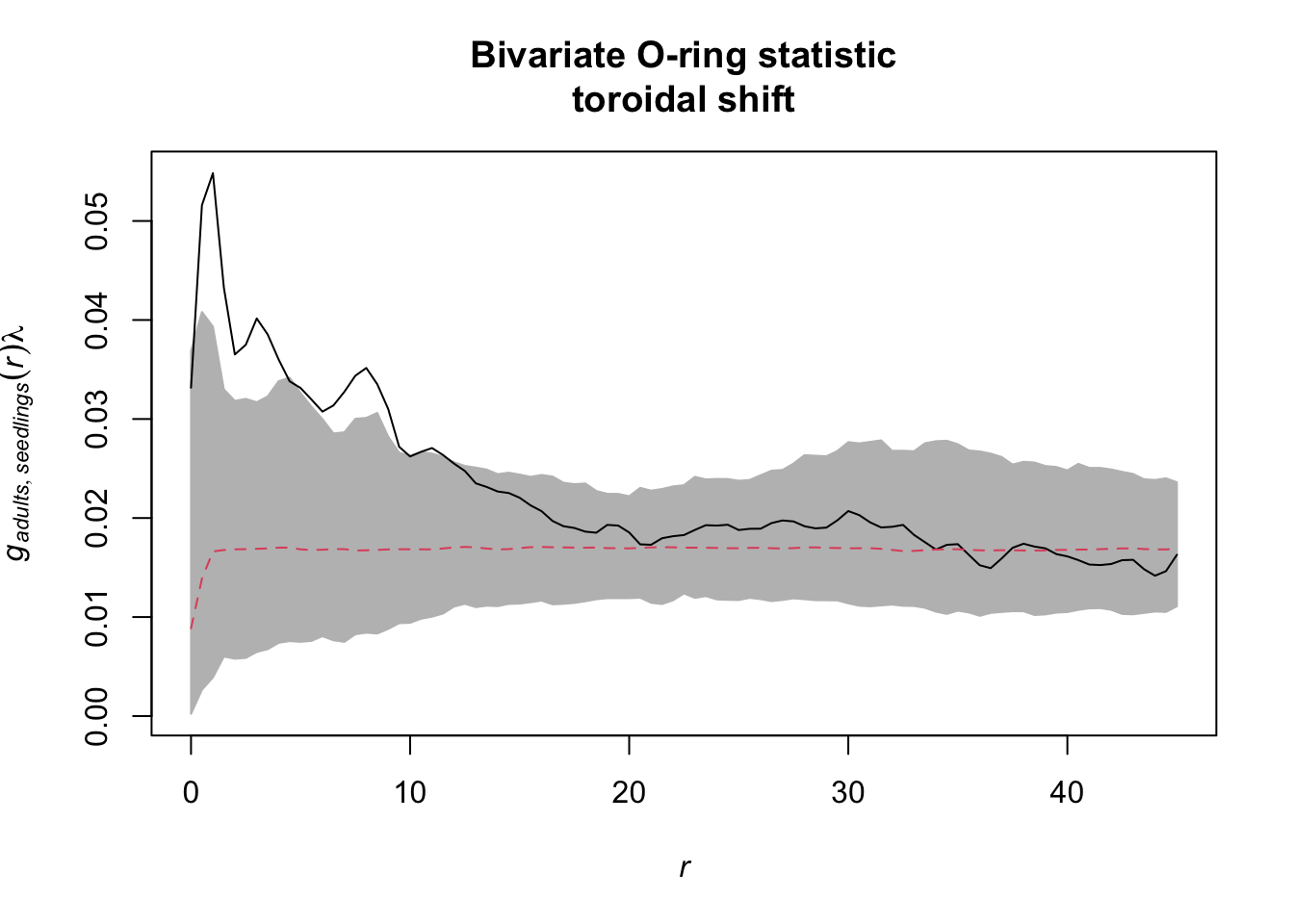

toroidal_shift <- envelope(douglas_fir_ppp, fun = Oest_cross,
i = "adults", j = "seedlings",
r = seq(from = 0, to = 45, by = 0.5),
nsim = 199, nrank = 5,
simulate = expression(rshift(douglas_fir_ppp,
which = "seedlings",
edge = "torus")))
